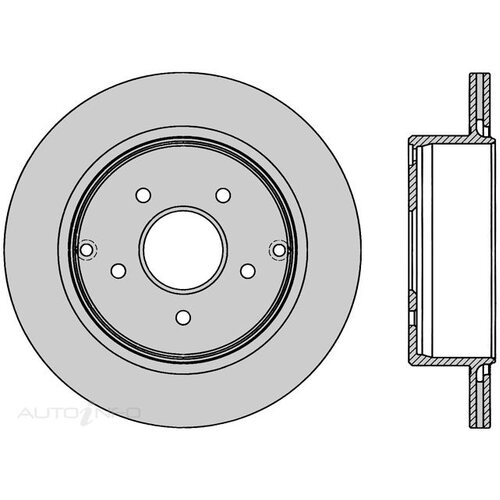

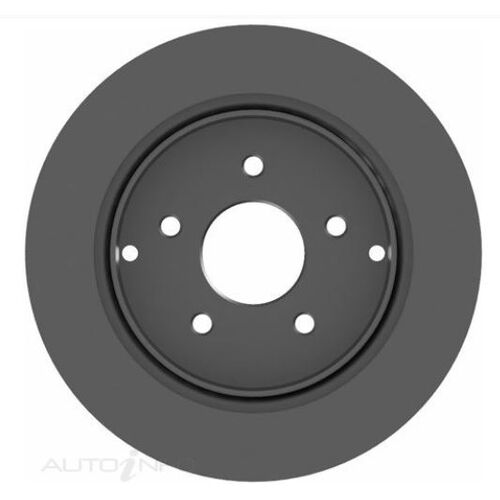

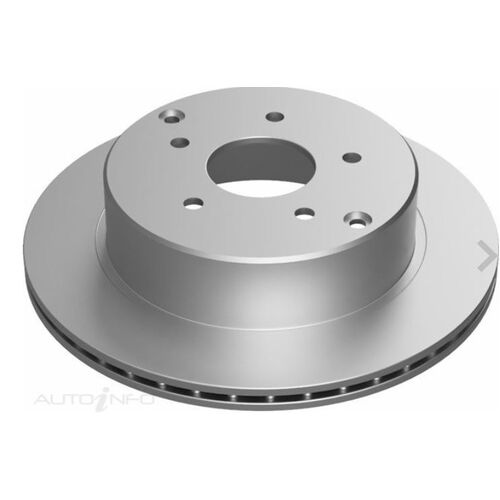

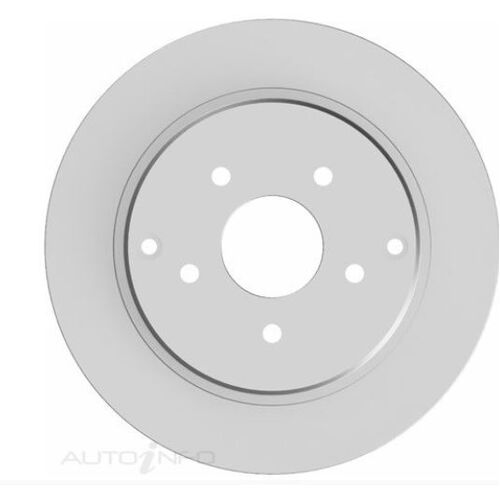

IBS Disc Brake Rotor Rear

Product Description
Fitment Location Rear
Pack Info 1
Vehicle Fitment

HSV AVALANCHE VY (4 Door Wagon) 2003 ~ 2004 5.7 litre LS1 (GENIII) V8 16V OHV
HSV AVALANCHE VZ (4 Door Wagon) 2004 ~ 2006 5.7 litre LS1 GENIII) V8 16V OHV
HSV AVALANCHE XUV VY (4 Door Utility) 2003 ~ 2004 5.7 litre LS1 GENIII) V8 16V OHV
HSV AVALANCHE XUV VZ (4 Doar Utifity) 2004 ~ 2006 5.7 litre LS1 GENIII) V8 16V OHV
HSV CLUBSPORT VT (4 Door Sedan) 1999 ~ 2000 5.7 litre LS1 GENIII) V8 16V OHV
HSV CLUBSPORT VT (4 Door Sedan) 1997 ~ 1999 5.0 litre 304 (LB9) V8 16V OHV
HSV CLUBSPORT VX (4 Door Sedan) 2000 ~ 2002 5.7 litre LS1 (GENIII). V8 16V OHV
HSV CLUBSPORT VX (4 Door Sedan) 2000 ~ 2003 5.7 litre LS1 C48 VB 16V OHV
HSV CLUBSPORT VY (4 Door Sedan) 2003 ~ 2004 5.7 litre LS1 GENIII) V8 16V OHV
HSV CLUBSPORT VY (4 Door Sedan) 2002 ~ 2004 5.7 litre LS1 C4B VB 16V OHV
HSV CLUBSPORT VY (4 Door Sedan) 2002 ~ 2003 5.7 litre LS1 GENIII) V8 16V OHV
HSV CLUBSPORT VZ (4 Door Sedan) 2004 ~ 2006 6.0 litre LS2 V8 16V OHV
HSV CLUBSPORT R8 VT (4 Door Sedan) 1999 ~ 2000 5.7 litre LS1 (GENIII) V8 16V OHV
HSV CLUBSPORT R8 VX (4 Door Sedan) 2000 ~ 2002 5.7 litre LS1 (GENIII) V8 16V OHV
HSV CLUBSPORT RB VY (4 Door Sedan) 2003 ~ 2004 5.7 litre LS1 ((GENIII) V8 16V OHV
HSV CLUBSPORT R8 VY (4 Door Sedan) 2002 ~ 2003 5.7 litre LST (GENIII) V8 16V OHV
HSV CLUBSPORT R8 VZ (4 Door Sedan) 2004 ~ 2006 6.0 litre LS2 V8 16V OHV
HSV COUPE V2 (2 Door Coupe) 2004 ~ 2004 5.7 litre LS1 GENIII) V8 16V OHV
HSV COUPE V2 (2 Door Coupe) 2004 ~ 2006 5.7 litre LS1 (GENIII) V8 16V OHV
HSV COUPE GTO V2 (2 Door Coupe) 2001 ~ 2003 5.7 litre LS1 GENIII) V8 16V OHV
HSV COUPE GTO V2 (2 Door Coupe) 2003 ~ 2003 5.7 litre LS1 GENIII)) VB 16V OHV
HSV COUPE GTO V2 (2 Door Coupe) 2003 ~ 2004 5.7 litre LS1 GENIII) V8 16V OHV
HSV COUPE GTO VZ (2 Door Coupe}.2004 ~ 2006 6.0 litre LS2 VB 16V OHV
HSV COUPE GTS V2 (2 Door Coupe) 2003 ~ 2003 5.7 litre LS1 GENIII) V8 16V OHV
HSV COUPE GTS V2 (2 Door Coupe) 2001 ~ 2003 5.7 litre LST GENIII) V8 16V OHV
HSV COUPE GTS V2 (2 Door Coupe) 2004 ~ 2004 5.7 litre LS1 (GENIII) V8 16V OHV
HSV GTS VT (4 Door Sedan) 1997 ~ 2000 5.0 litre 304 (LBS) V8 16V OHV
HSV GTS VX (4 Door Sedan) 2000 ~ 2001 5.7 litre LS1 GENIII) V8 16V OHV
HSV GTS VY (4 Door Sedan) 2002 ~ 2004 5.7 litre LS1 GENIII) V8 16V OHV
HSV MALOO VY (2 Door Utility) 2002 ~ 2003 5,7 litre LS1 GENIII) V8 16V OHV
HSV MALOO VY (2 Door Lititity) 2004 ~ 2004 5.7 litre LS1 C4B V3 16V OHV
HSV MALOO VY (2 Door Utility) 2003 ~ 2004 5.7 litre LS1 (GENIII) V8 16V OHV
HSV MALOO VZ (2 Door Utility) 2004 ~ 2007 6.0 litre LS2 V8 16V OHV
HSV MALOO R8 VE (2 Door Utility) 2007 ~ 2008 6.0 litre LS2 VB 16V OHV
HSV MALOO R8 VU (2 Door Utility) 2001 ~ 2002 5.7 litre LSt (GENIII) V8-16V OHV
HSV MALOO R8 VY (2 Door Utility) 2002 ~ 2003 5.7 litre LSt GENIII) V8 16V OHV
HSV MALOO RB VY (2 Door Utility) 2003 ~ 2004 5.7 litre LS1 GENIII) VB 16V OHV
HSV MALOO R8 VZ (2 Door Utility) 2004 ~ 2007 6.0 litre LS2 V8 16V OHV
HSV SENATOR VY (4 Door Sedan) 2002: ~ 2003 5.7 litre LS7 (GENIII) V8. 16V OHV
HSV SENATOR VY (4 Door Sedan) 2003 ~ 2004 5.7 litre LST (GENIIN) V8 16V OHV
HSV SENATOR SIGNATURE VT (4 Door Sedan) 1999 ~ 2000 5.7 litre LSt GENIII) V8 16V OHV
HSV SENATOR SIGNATURE VT (4 Door Wagon) 1999 ~ 2000 5.7 litre LS1 GENIII) V8 TéV OHV

HSV SENATOR SIGNATURE VX (4 Door Sedan) 2000 ~ 2002 5.7 litre LS1 GENIII) V8 16V OHV
HSV SENATOR SIGNATURE VY (4 Door Sedan) 2002 ~ 2003 5.7 litre LS1 (GENIII) V8 16V OHV
HSV SENATOR SIGNATURE VY (4 Door Sedan) 2003 ~ 2004 5.7 litre LS1 (GENIII) V8 16V OHV
HSV SENATOR SIGNATURE 1951 VT (4 Door Sedan) 1997 ~ 1999 5.0 litre 304 (LBS) V8 16V OHV
HSV SENATOR SIGNATURE 195i VT (4 Door Wagon) 1997 ~ 1999 5.0 litre 304 (LB9) V8 16V OHV
HSV SENATOR SIGNATURE 220) VT (4 Door Sedan) 1997 ~ 1999 5.7 litre 304 Stroker V8 16V OHV
HSV SENATOR SIGNATURE 2201 VT (4 Door Wagon) 1997 ~ 1999 5.7 litre 304 Stroker V8 16V OHV
HSV SV6000 VZ (4 Door Sedan) 2005 ~ 2006 6.0 litre LS2 V8 16V OHV
HSV XU8 VT (4 Door Sedan} 1999 ~ 1999 5.0 litre 304 (LBS) V8 16V OHV

Technical Specifications
Protex_Blue
#GM Part Number
Rotor Diameter 315mm
Hub Height 71mm
Centre Hole Dia. 40mm
Original Thickness (Max) 18mm
Original Thickness (Min) 16mm
Studs/Bolt Holes 5
Rotor Type
Weight 0.0000Kg
Information About Disc Rotor

Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.

We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.

If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors

  • Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
  • Drilled - Drilled rotors feature drilled holes around the metal surface
  • Slotted - Slotted rotors feature long "slots" or lines in the metal surface
  • Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance

Blank & Smooth

Protex_Blue

As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.

Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.

Drilled Rotors

Protex_Blue

As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.

Slotted Rotors

Protex_Blue

As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.

Drilled & Slotted Rotors

Protex_Blue

Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.
