Zimmermann Disc Brake Rotor 330mm Rear- Pair

Specifications

Surface :    Coated
Pitch Circle Ø :    112

OEM Number

AUDI (FAW) : 4H0 615 601 K
AUDI (FAW) : 4H0 615 601 H
AUDI (FAW) : 4H0 615 601 Q
AUDI (FAW) : 8W0 615 601 E
AUDI (FAW) : 8W0 615 601 K
AUDI (FAW) : L80D615601
PORSCHE : 95B 615 601 A
PORSCHE : 95B 615 601 G
PORSCHE : 95B615601A
PORSCHE : 95B615601G
VAG : 80A 615 601 C
VAG : 4H0 615 601 H
VAG : 4H0 615 601 K
VAG : 4H0 615 601 Q
VAG : 4H0 615 601 D
VAG : 8W0 615 601 E
VAG : 8W0 615 601 K
VW (SVW) : 4H0 615 601 Q
VW (SVW) : 4H0 615 601 K

Product Description
Fitment Location Rear
Pack Info 2
Vehicle Fitment

AUDI Q5 (8RB) 2.0 TDI quattro 190HP/1968cc SUV 11/2013-05/2017
AUDI Q5 (8RB) 2.0 TDI quattro 177HP/1968cc SUV 06/2012-05/2017
AUDI Q5 (8RB) 2.0 TDI quattro 170HP/1968cc SUV 11/2008-09/2012
AUDI Q5 (8RB) 2.0 TFSI quattro 230HP/1984cc SUV 08/2015-05/2017
AUDI Q5 (8RB) 2.0 TFSI quattro 224HP/1984cc SUV 06/2012-05/2016
AUDI Q5 (8RB) 2.0 TFSI quattro 211HP/1984cc SUV 11/2008-09/2012
AUDI Q5 (8RB) 3.0 TDI quattro 258HP/2967cc SUV 11/2013-05/2017
AUDI Q5 (8RB) 3.0 TDI quattro 245HP/2967cc SUV 06/2012-05/2017
AUDI Q5 (8RB) 3.0 TDI quattro 240HP/2967cc SUV 11/2008-05/2017
AUDI Q5 (8RB) 3.0 TFSI quattro 272HP/2995cc SUV 06/2012-05/2017
AUDI Q5 (8RB) 3.2 FSI quattro 270HP/3197cc SUV 11/2008-12/2012
AUDI Q5 (8RB) SQ5 TDI quattro 340HP/2967cc SUV 11/2015-05/2017
AUDI Q5 (8RB) SQ5 TDI quattro 326HP/2967cc SUV 04/2015-05/2017
AUDI Q5 (8RB) SQ5 TDI quattro 313HP/2967cc SUV 12/2012-11/2015
AUDI Q5 (FYB, FYG) 2.0 TDI quattro 190HP/1968cc SUV 06/2016-08/2018
AUDI Q5 (FYB, FYG) 2.0 TFSI quattro 252HP/1984cc SUV 06/2016-11/2020
AUDI Q5 (FYB, FYG) 3.0 TDI quattro 286HP/2967cc SUV 07/2017-11/2020
AUDI Q5 (FYB, FYG) 40 TDI quattro 190HP/1968cc SUV 10/2018-On
AUDI Q5 (FYB, FYG) 45 TFSI Mild Hybrid quattro 245HP/1984cc SUV 12/2018-On
AUDI Q5 (FYB, FYG) 50 TDI quattro 286HP/2967cc SUV 03/2019-11/2020
AUDI Q5 (FYB, FYG) SQ5 TDI Mild Hybrid 341HP/2967cc SUV 01/2021-On
AUDI Q5 (FYB, FYG) SQ5 TDI Mild Hybrid quattro 347HP/2967cc SUV 02/2019-09/2020
AUDI Q5 (FYB, FYG) SQ5 TFSI quattro 354HP/2995cc SUV 11/2016-On

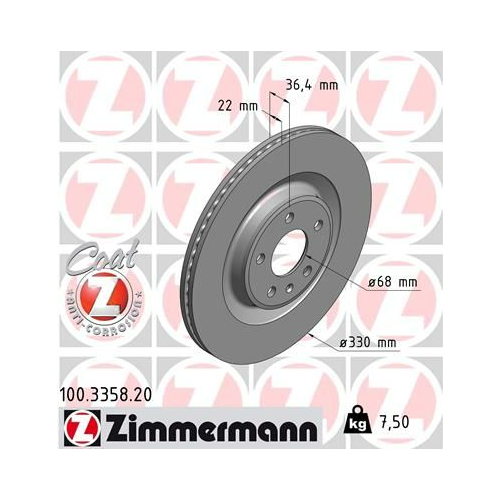

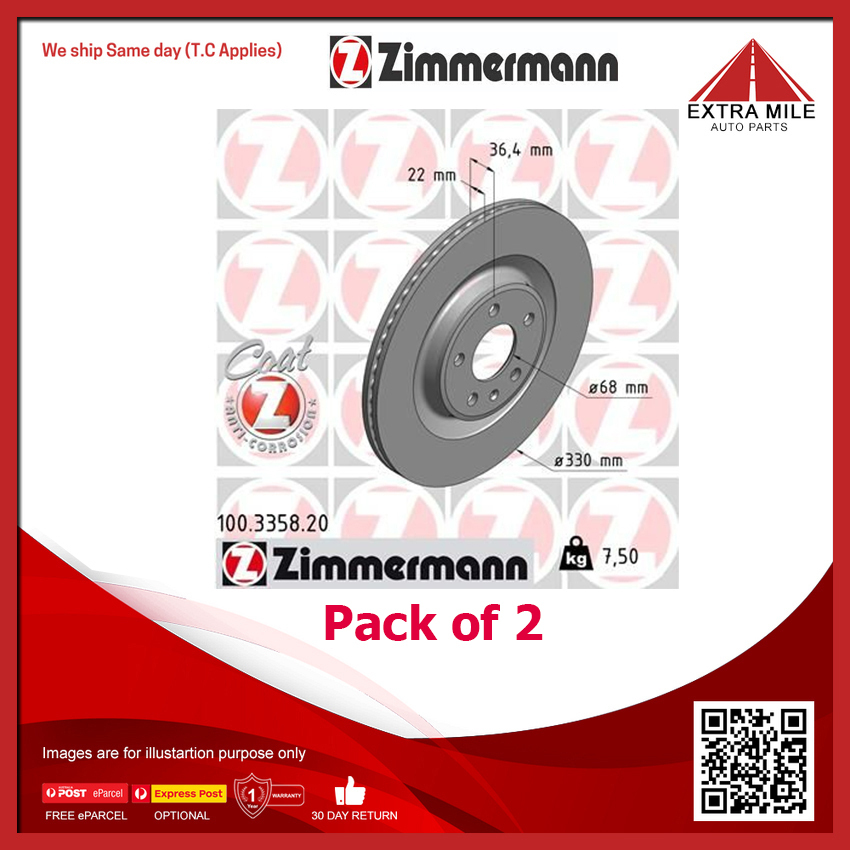

Technical Specifications
Protex_Blue
#GM Part Number 4H0 615 601 K / 4H0 615 601 H / 4H0 615 601 Q / 8W0 615 601 E
Rotor Diameter 330mm
Hub Height 36mm
Centre Hole Dia. 68mm
Original Thickness (Max) 22mm
Original Thickness (Min) 20mm
Studs/Bolt Holes 5
Rotor Type Vented
Weight 7.5000Kg
Information About Disc Rotor

Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.

We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.

If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors

  • Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
  • Drilled - Drilled rotors feature drilled holes around the metal surface
  • Slotted - Slotted rotors feature long "slots" or lines in the metal surface
  • Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance

Blank & Smooth

Protex_Blue

As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.

Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.

Drilled Rotors

Protex_Blue

As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.

Slotted Rotors

Protex_Blue

As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.

Drilled & Slotted Rotors

Protex_Blue

Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.

cutting_edge_tec

Why you should buy Disc Rotor Auto Parts from us?

  • Authorized Dealer Genuine Warranty
  • 15 Years Industry Experience
  • Pre-sales Customer Service Support
  • 100% Fitment Guarantee
  • Local Warehouse Fast Delivery
  • Free 30 Days Returns
AUDI Q5 (8RB) 2.0 TDI quattro 190HP/1968cc SUV 11/2013-05/2017
AUDI Q5 (8RB) 2.0 TDI quattro 177HP/1968cc SUV 06/2012-05/2017
AUDI Q5 (8RB) 2.0 TDI quattro 170HP/1968cc SUV 11/2008-09/2012
AUDI Q5 (8RB) 2.0 TFSI quattro 230HP/1984cc SUV 08/2015-05/2017
AUDI Q5 (8RB) 2.0 TFSI quattro 224HP/1984cc SUV 06/2012-05/2016
AUDI Q5 (8RB) 2.0 TFSI quattro 211HP/1984cc SUV 11/2008-09/2012
AUDI Q5 (8RB) 3.0 TDI quattro 258HP/2967cc SUV 11/2013-05/2017
AUDI Q5 (8RB) 3.0 TDI quattro 245HP/2967cc SUV 06/2012-05/2017
AUDI Q5 (8RB) 3.0 TDI quattro 240HP/2967cc SUV 11/2008-05/2017
AUDI Q5 (8RB) 3.0 TFSI quattro 272HP/2995cc SUV 06/2012-05/2017
AUDI Q5 (8RB) 3.2 FSI quattro 270HP/3197cc SUV 11/2008-12/2012
AUDI Q5 (8RB) SQ5 TDI quattro 340HP/2967cc SUV 11/2015-05/2017
AUDI Q5 (8RB) SQ5 TDI quattro 326HP/2967cc SUV 04/2015-05/2017
AUDI Q5 (8RB) SQ5 TDI quattro 313HP/2967cc SUV 12/2012-11/2015
AUDI Q5 (FYB, FYG) 2.0 TDI quattro 190HP/1968cc SUV 06/2016-08/2018
AUDI Q5 (FYB, FYG) 2.0 TFSI quattro 252HP/1984cc SUV 06/2016-11/2020
AUDI Q5 (FYB, FYG) 3.0 TDI quattro 286HP/2967cc SUV 07/2017-11/2020
AUDI Q5 (FYB, FYG) 40 TDI quattro 190HP/1968cc SUV 10/2018-On
AUDI Q5 (FYB, FYG) 45 TFSI Mild Hybrid quattro 245HP/1984cc SUV 12/2018-On
AUDI Q5 (FYB, FYG) 50 TDI quattro 286HP/2967cc SUV 03/2019-11/2020
AUDI Q5 (FYB, FYG) SQ5 TDI Mild Hybrid 341HP/2967cc SUV 01/2021-On
AUDI Q5 (FYB, FYG) SQ5 TDI Mild Hybrid quattro 347HP/2967cc SUV 02/2019-09/2020
AUDI Q5 (FYB, FYG) SQ5 TFSI quattro 354HP/2995cc SUV 11/2016-On
SKU 100.3358.20_4
Barcode # 4250238750611
Brand ZIMMERMANN
Shipping Weight 7.5000kg
