Zimmermann Disc Brake Rotor 400mm Front

Specifications

Surface :    Coated
Pitch Circle Ø :    112

OEM Number

VAG : 4H0 615 301 AL
VAG : 4H0 615 301 T
VAG : 4H0 615 301 M

Product Description
Fitment Location Front
Pack Info 1
Vehicle Fitment

AUDI A6 C7 (4G2, 4GC) 1.8 TFSI 190HP/1798cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 190HP/1968cc Sedan 11/2013-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 177HP/1968cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI 180HP/1984cc Sedan 05/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI quattro 252HP/1984cc Sedan 05/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 2.8 FSI quattro 204HP/2773cc Sedan 11/2010-04/2015
AUDI A6 C7 (4G2, 4GC) 3.0 TDI 218HP/2967cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 320HP/2967cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 313HP/2967cc Sedan 11/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 245HP/2967cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 218HP/2967cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 204HP/2967cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 310HP/2995cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 300HP/2995cc Sedan 11/2010-05/2012
AUDI A6 C7 (4G2, 4GC) S6 quattro 450HP/3993cc Sedan 10/2014-09/2018
AUDI A6 C7 (4G2, 4GC) S6 quattro 420HP/3993cc Sedan 02/2012-09/2018
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI 177HP/1968cc Wagon 05/2011-09/2018
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TFSI 180HP/1984cc Wagon 06/2011-09/2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 218HP/2967cc Wagon 09/2014-09/2018

Technical Specifications
Protex_Blue
#GM Part Number 4H0 615 301 AL / 4H0 615 301 T / 4H0 615 301 M

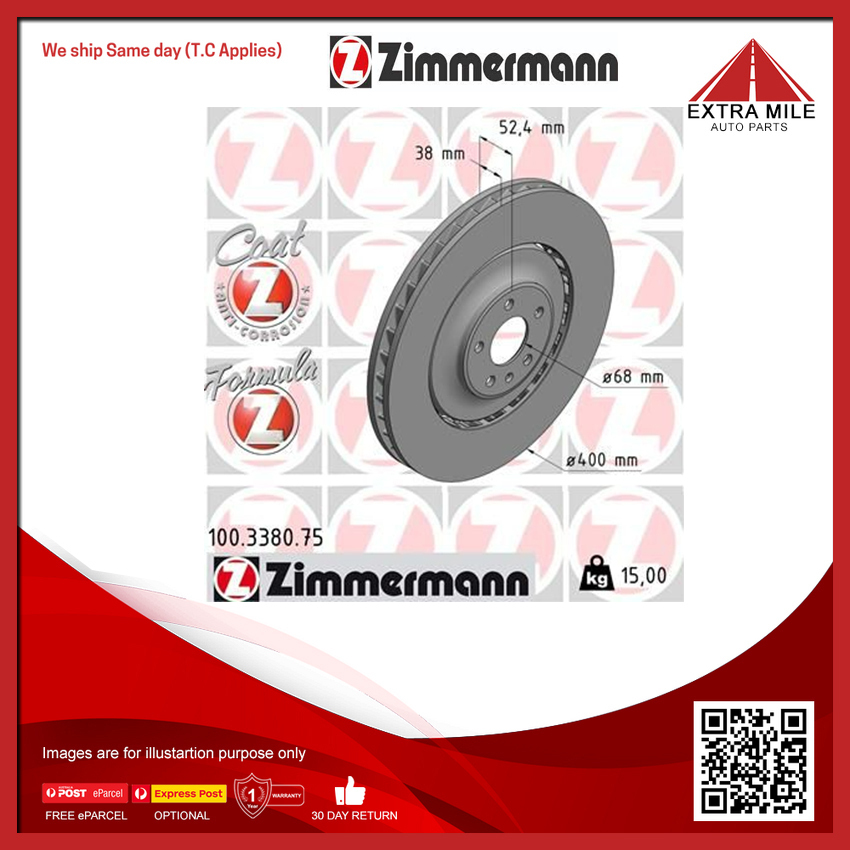

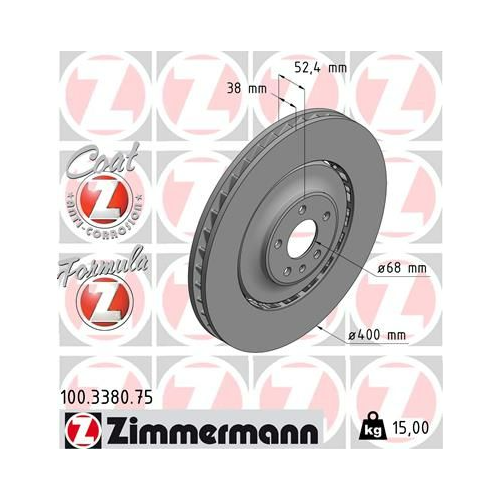

Rotor Diameter 400mm
Hub Height 52mm
Centre Hole Dia. 68mm
Original Thickness (Max) 38mm
Original Thickness (Min) 35mm
Studs/Bolt Holes 5
Rotor Type Vented
Weight 15.0000Kg
Information About Disc Rotor

Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.

We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.

If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors

  • Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
  • Drilled - Drilled rotors feature drilled holes around the metal surface
  • Slotted - Slotted rotors feature long "slots" or lines in the metal surface
  • Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance

Blank & Smooth

Protex_Blue

As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.

Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.

Drilled Rotors

Protex_Blue

As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.

Slotted Rotors

Protex_Blue

As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.

Drilled & Slotted Rotors

Protex_Blue

Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.

cutting_edge_tec

Why you should buy Disc Rotor Auto Parts from us?

  • Authorized Dealer Genuine Warranty
  • 15 Years Industry Experience
  • Pre-sales Customer Service Support
  • 100% Fitment Guarantee
  • Local Warehouse Fast Delivery
  • Free 30 Days Returns
AUDI A6 C7 (4G2, 4GC) 1.8 TFSI 190HP/1798cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 190HP/1968cc Sedan 11/2013-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 177HP/1968cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI 180HP/1984cc Sedan 05/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI quattro 252HP/1984cc Sedan 05/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 2.8 FSI quattro 204HP/2773cc Sedan 11/2010-04/2015
AUDI A6 C7 (4G2, 4GC) 3.0 TDI 218HP/2967cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 320HP/2967cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 313HP/2967cc Sedan 11/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 245HP/2967cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 218HP/2967cc Sedan 09/2014-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 204HP/2967cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 310HP/2995cc Sedan 03/2011-09/2018
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 300HP/2995cc Sedan 11/2010-05/2012
AUDI A6 C7 (4G2, 4GC) S6 quattro 450HP/3993cc Sedan 10/2014-09/2018
AUDI A6 C7 (4G2, 4GC) S6 quattro 420HP/3993cc Sedan 02/2012-09/2018
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI 177HP/1968cc Wagon 05/2011-09/2018
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TFSI 180HP/1984cc Wagon 06/2011-09/2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 218HP/2967cc Wagon 09/2014-09/2018
SKU 100.3380.75_3
Barcode # 4250238768616
Brand ZIMMERMANN
Shipping Weight 15.0000kg
