Zimmermann Disc Brake Rotors Pair 312mm Front For Audi A1 8X1 8XK, 8XA 8XF S1

Description

Zimmermann Disc Brake Rotors Pair 312mm Front

Specifications

Surface : Coated
Pitch Circle Ø : 112

OEM Number

AUDI (FAW) : L1KD 615 301 D
SKODA (SVW) : 3CD 615 301
SKODA (SVW) : 1K0 615 301 AA
SKODA (SVW) : 1KD 615 301 D
VAG : 5QM 615 301 A
VAG : 1K0 615 301 AA
VAG : 5Q0 615 301 F
VAG : 5C0 615 301 B
VAG : 561 615 301
VAG : 561 615 301 A
VAG : 561 615 301 B
VAG : JZW 615 301 H
VAG : 5C0 615 301 E
VAG : L1KD 615 301 D
VAG : 1KD 615 301 D
VAG : 3CD 615 301
VAG : L3CD 615 301
VW (FAW) : 1K0 615 301 AA
VW (FAW) : 1KD 615 301 D
VW (FAW) : L3CD 615 301
VW (FAW) : L1KD 615 301 D
VW (FAW) : L1K0 615 301 AA
VW (FAW) : 3CD 615 301
VW (FAW) : 5C0 615 301 B
VW (FAW) : 5C0 615 301 E
VW (SVW) : 1KD 615 301 D
VW (SVW) : 1K0 615 301 AA

Product Description

Fitment Location	Front
Pack Info	Pair

Vehicle Fitment

AUDI A1 (8X1, 8XK) 1.2 TFSI 86HP/1197cc Hatchback 05/2010-04/2015
AUDI A1 (8X1, 8XK) 1.4 TFSI 122HP/1390cc Hatchback 05/2010-04/2015
AUDI A1 (8X1, 8XK) 1.4 TFSI 125HP/1395cc Hatchback 11/2014-10/2018
AUDI A1 (8X1, 8XK) 1.4 TFSI 185HP/1390cc Hatchback 01/2011-04/2015
AUDI A1 (8X1, 8XK) 1.6 TDI 90HP/1598cc Hatchback 03/2011-04/2015
AUDI A1 (8X1, 8XK) S1 quattro 231HP/1984cc Hatchback 03/2014-10/2018
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 86HP/1197cc Hatchback 01/2012-04/2015
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 122HP/1390cc Hatchback 11/2011-04/2015
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 125HP/1395cc Hatchback 11/2014-10/2018
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 185HP/1390cc Hatchback 11/2011-04/2015
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 90HP/1598cc Hatchback 11/2011-04/2015
AUDI A1 Sportback (8XA, 8XF) S1 quattro 231HP/1984cc Hatchback 03/2014-10/2018

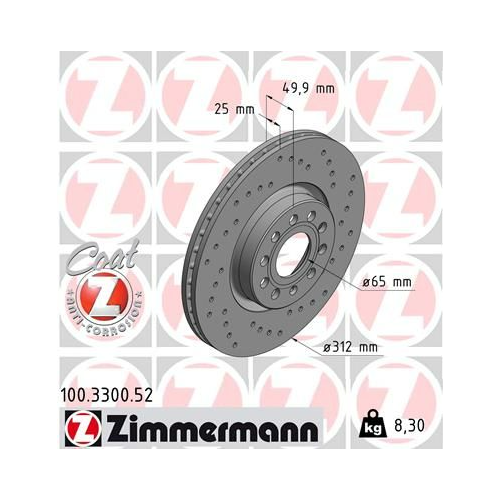

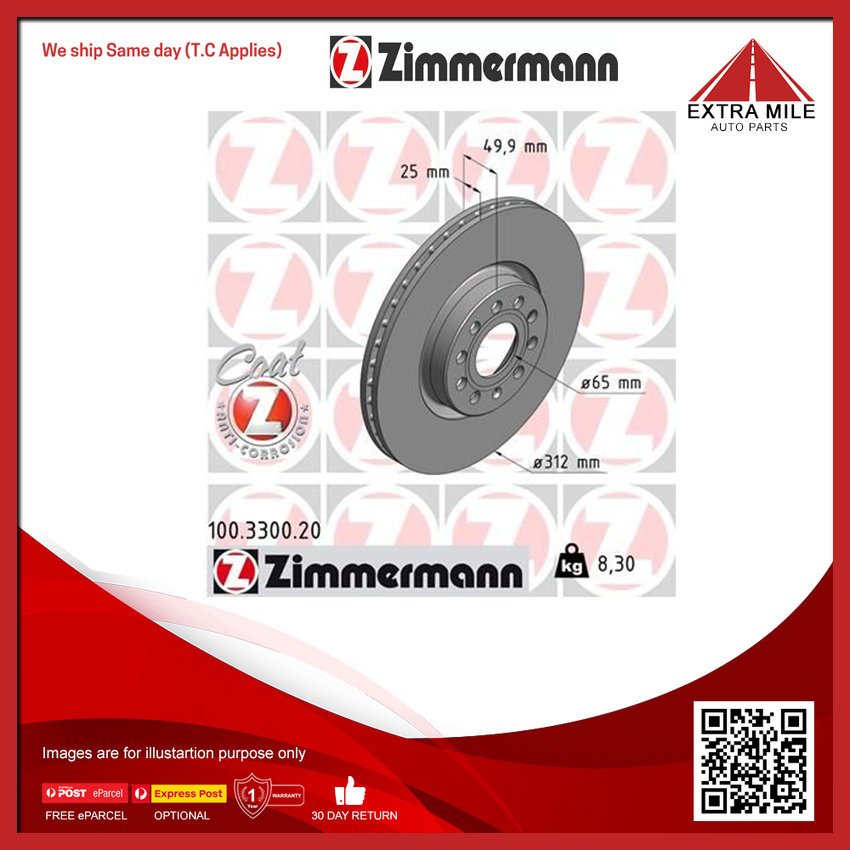

Technical Specifications

#GM Part Number	L1KD 615 301 D / 3CD 615 301 / 1K0 615 301 AA / 1KD 615 301 D
Rotor Diameter	312mm
Hub Height	50mm
Centre Hole Dia.	65mm
Original Thickness (Max)	25mm
Original Thickness (Min)	22mm
Studs/Bolt Holes	5
Rotor Type	Vented
Weight	8.3000Kg

Information About Disc Rotor

Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.

We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.

If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors

Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
Drilled - Drilled rotors feature drilled holes around the metal surface
Slotted - Slotted rotors feature long "slots" or lines in the metal surface
Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance

Blank & Smooth

As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.

Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.

Drilled Rotors

As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.

Slotted Rotors

As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.

Drilled & Slotted Rotors

Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.
