Zimmermann Disc Brake Rotors Pair 312mm Front For Audi A3 8P1, 8V1 8VK, 8PA,8YA
SKU code: 100.3300.52_18
Zimmermann Disc Brake Rotors Pair 312mm Front
Specifications
Surface : Coated
Pitch Circle Ø : 112
OEM Number
AUDI (FAW) : L1KD 615 301 D
SKODA (SVW) : 3CD 615 301
SKODA (SVW) : 1K0 615 301 AA
SKODA (SVW) : 1KD 615 301 D
VAG : 5QM 615 301 A
VAG : 1K0 615 301 AA
VAG : 5Q0 615 301 F
VAG : 5C0 615 301 B
VAG : 561 615 301
VAG : 561 615 301 A
VAG : 561 615 301 B
VAG : JZW 615 301 H
VAG : 5C0 615 301 E
VAG : L1KD 615 301 D
VAG : 1KD 615 301 D
VAG : 3CD 615 301
VAG : L3CD 615 301
VW (FAW) : 1K0 615 301 AA
VW (FAW) : 1KD 615 301 D
VW (FAW) : L3CD 615 301
VW (FAW) : L1KD 615 301 D
VW (FAW) : L1K0 615 301 AA
VW (FAW) : 3CD 615 301
VW (FAW) : 5C0 615 301 B
VW (FAW) : 5C0 615 301 E
VW (SVW) : 1KD 615 301 D
VW (SVW) : 1K0 615 301 AA
Fitment Location | Front |
Pack Info | Pair |
AUDI A3 (8P1) 1.4 TFSI 125HP/1390cc Hatchback 09/2007-08/2012 AUDI A3 (8P1) 1.6 102HP/1595cc Hatchback 05/2003-08/2012 AUDI A3 (8P1) 1.6 TDI 105HP/1598cc Hatchback 05/2009-08/2012 AUDI A3 (8P1) 1.8 TFSI 160HP/1798cc Hatchback 11/2006-08/2012 AUDI A3 (8P1) 1.9 TDI 105HP/1896cc Hatchback 05/2003-05/2010 AUDI A3 (8P1) 2.0 FSI 150HP/1984cc Hatchback 05/2003-06/2008 AUDI A3 (8P1) 2.0 TDI 140HP/1968cc Hatchback 06/2005-06/2008 AUDI A3 (8P1) 2.0 TDI 170HP/1968cc Hatchback 03/2006-08/2012 AUDI A3 (8P1) 2.0 TDI 16V 140HP/1968cc Hatchback 05/2003-08/2012 AUDI A3 (8P1) 2.0 TFSI 200HP/1984cc Hatchback 09/2004-08/2012 AUDI A3 (8P1) 2.0 TFSI quattro 200HP/1984cc Hatchback 09/2004-08/2012 AUDI A3 (8P1) 3.2 V6 quattro 250HP/3189cc Hatchback 07/2003-05/2009 AUDI A3 (8V1, 8VK) 1.4 TFSI 122HP/1395cc Hatchback 04/2012-05/2014 AUDI A3 (8V1, 8VK) 1.4 TFSI 125HP/1395cc Hatchback 05/2014-08/2016 AUDI A3 (8V1, 8VK) 1.4 TFSI 140HP/1395cc Hatchback 03/2013-08/2016 AUDI A3 (8V1, 8VK) 1.4 TSI 150HP/1395cc Hatchback 05/2014-12/2017 AUDI A3 (8V1, 8VK) 1.6 TDI 110HP/1598cc Hatchback 09/2013-12/2017 AUDI A3 (8V1, 8VK) 1.8 TFSI 180HP/1798cc Hatchback 04/2012-08/2016 AUDI A3 (8V1, 8VK) 1.8 TFSI quattro 180HP/1798cc Hatchback 08/2012-08/2016 AUDI A3 (8V1, 8VK) 2.0 TDI 150HP/1968cc Hatchback 04/2012-12/2017 AUDI A3 (8V1, 8VK) 2.0 TFSI 190HP/1984cc Hatchback 05/2016-12/2017 AUDI A3 (8V1, 8VK) S3 quattro 290HP/1984cc Hatchback 07/2016-12/2017 AUDI A3 (8P7) 1.6 102HP/1595cc Convertible 09/2008-05/2010 AUDI A3 (8P7) 1.8 TFSI 160HP/1798cc Convertible 04/2008-05/2013 AUDI A3 (8P7) 2.0 TFSI 200HP/1984cc Convertible 04/2008-05/2013 AUDI A3 (8V7, 8VE) 1.4 TFSI 140HP/1395cc Convertible 10/2013-On AUDI A3 (8V7, 8VE) 1.4 TSI 150HP/1395cc Convertible 05/2014-10/2020 AUDI A3 (8V7, 8VE) 1.8 TFSI 180HP/1798cc Convertible 10/2013-07/2016 AUDI A3 (8V7, 8VE) 1.8 TFSI quattro 180HP/1798cc Convertible 03/2014-On AUDI A3 (8V7, 8VE) 2.0 TDI 150HP/1968cc Convertible 10/2013-10/2020 AUDI A3 (8V7, 8VE) 2.0 TFSI 190HP/1984cc Convertible 05/2016-10/2020 AUDI A3 (8V7, 8VE) 2.0 TFSI quattro 190HP/1984cc Convertible 05/2016-10/2020 AUDI A3 (8V7, 8VE) 40 TFSI 190HP/1984cc Convertible 11/2018-10/2020 AUDI A3 (8V7, 8VE) 40 TFSI quattro 190HP/1984cc Convertible 11/2018-10/2020 AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 140HP/1395cc Sedan 05/2013-On AUDI A3 Limousine (8VS, 8VM) 1.4 TSI 150HP/1395cc Sedan 05/2014-10/2020 AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 170HP/1798cc Sedan 11/2013-10/2020 AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 180HP/1798cc Sedan 05/2013-On AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI quattro 180HP/1798cc Sedan 11/2013-On AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 150HP/1968cc Sedan 05/2013-10/2020 AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 190HP/1984cc Sedan 05/2016-10/2020 AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 190HP/1984cc Sedan 05/2016-10/2020 AUDI A3 Limousine (8VS, 8VM) S3 quattro 290HP/1984cc Sedan 08/2016-10/2020 AUDI A3 Limousine (8YS) 35 TFSI Mild Hybrid 150HP/1498cc Sedan 04/2020-On AUDI A3 Sportback (8PA) 1.4 TFSI 125HP/1390cc Hatchback 09/2007-03/2013 AUDI A3 Sportback (8PA) 1.6 102HP/1595cc Hatchback 09/2004-03/2013 AUDI A3 Sportback (8PA) 1.6 TDI 105HP/1598cc Hatchback 05/2009-03/2013 AUDI A3 Sportback (8PA) 1.8 TFSI 160HP/1798cc Hatchback 11/2006-03/2013 AUDI A3 Sportback (8PA) 1.9 TDI 105HP/1896cc Hatchback 09/2004-05/2010 AUDI A3 Sportback (8PA) 2.0 FSI 150HP/1984cc Hatchback 09/2004-06/2008 AUDI A3 Sportback (8PA) 2.0 TDI 140HP/1968cc Hatchback 06/2005-06/2008 AUDI A3 Sportback (8PA) 2.0 TDI 170HP/1968cc Hatchback 03/2006-03/2013 AUDI A3 Sportback (8PA) 2.0 TDI 16V 140HP/1968cc Hatchback 09/2004-03/2013 AUDI A3 Sportback (8PA) 2.0 TFSI 200HP/1984cc Hatchback 09/2004-03/2013 AUDI A3 Sportback (8PA) 2.0 TFSI quattro 200HP/1984cc Hatchback 09/2004-03/2013 AUDI A3 Sportback (8PA) 3.2 V6 quattro 250HP/3189cc Hatchback 09/2004-05/2009 AUDI A3 Sportback (8VA, 8VF) 1.0 TFSI 115HP/999cc Hatchback 07/2016-10/2020 AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 122HP/1395cc Hatchback 09/2012-10/2020 AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 125HP/1395cc Hatchback 05/2014-08/2016 AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 140HP/1395cc Hatchback 03/2013-On AUDI A3 Sportback (8VA, 8VF) 1.4 TSI 150HP/1395cc Hatchback 05/2014-10/2020 AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 105HP/1598cc Hatchback 10/2012-On AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 110HP/1598cc Hatchback 09/2013-10/2020 AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 115HP/1598cc Hatchback 02/2017-10/2020 AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI 180HP/1798cc Hatchback 09/2012-On AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro 180HP/1798cc Hatchback 05/2013-On AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 150HP/1968cc Hatchback 09/2012-10/2020 AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI 190HP/1984cc Hatchback 05/2016-10/2020 AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro 190HP/1984cc Hatchback 05/2016-10/2020 AUDI A3 Sportback (8VA, 8VF) S3 quattro 290HP/1984cc Hatchback 07/2016-10/2020 AUDI A3 Sportback (8YA) 35 TFSI Mild Hybrid 150HP/1498cc Hatchback 04/2020-On
#GM Part Number | L1KD 615 301 D / 3CD 615 301 / 1K0 615 301 AA / 1KD 615 301 D |

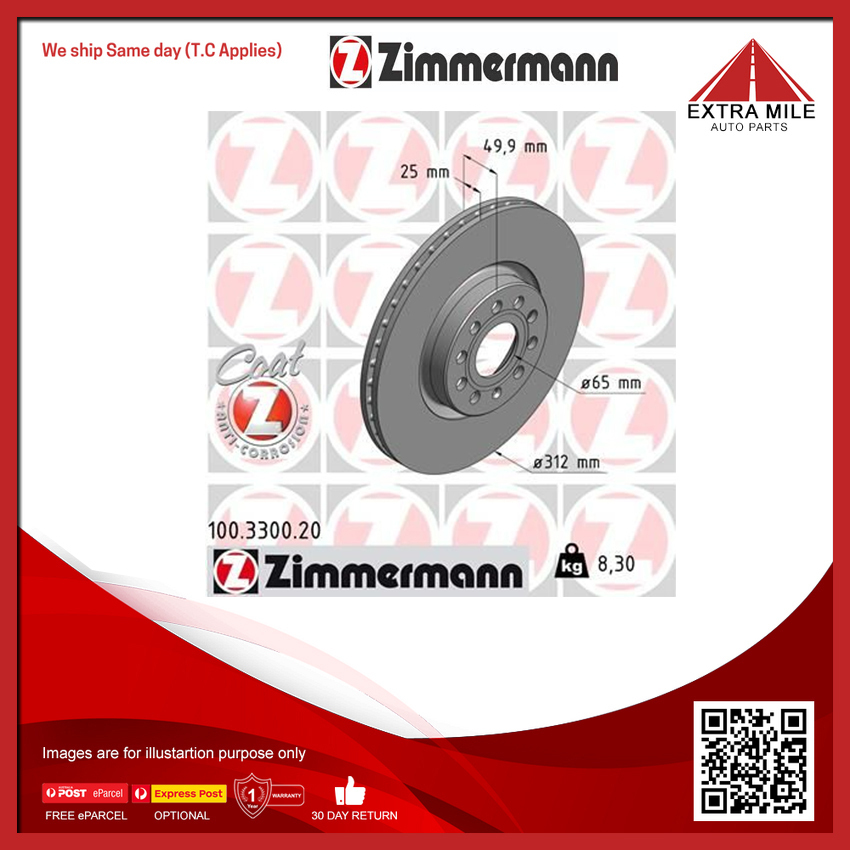

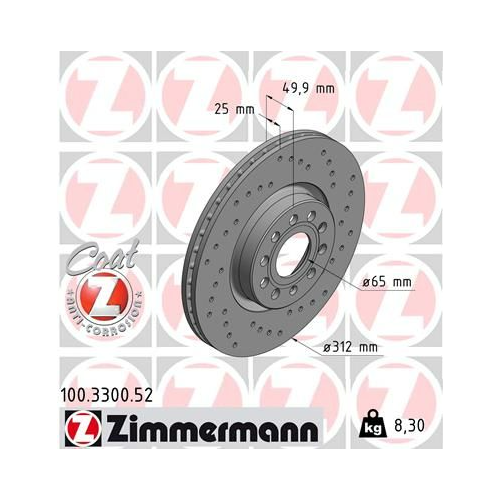

Rotor Diameter | 312mm |
Hub Height | 50mm |
Centre Hole Dia. | 65mm |
Original Thickness (Max) | 25mm |
Original Thickness (Min) | 22mm |
Studs/Bolt Holes | 5 |
Rotor Type | Vented |
Weight | 8.3000Kg |
Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.
We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.
If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors
- Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
- Drilled - Drilled rotors feature drilled holes around the metal surface
- Slotted - Slotted rotors feature long "slots" or lines in the metal surface
- Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance
Blank & Smooth
As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.
Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.
Drilled Rotors
As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.
Slotted Rotors
As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.
Drilled & Slotted Rotors
Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.
Why you should buy Disc Rotor Auto Parts from us?
- Authorized Dealer Genuine Warranty
- 15 Years Industry Experience
- Pre-sales Customer Service Support
- 100% Fitment Guarantee
- Local Warehouse Fast Delivery
- Free 30 Days Returns
SKU | 100.3300.52_18 |
Barcode # | 4250238748465 |
Brand | ZIMMERMANN |
Shipping Weight | 8.3000kg |
