Zimmermann Disc Brake Rotors Pair 312mm Front

Specifications

Surface :    Coated
Pitch Circle Ø :    112

OEM Number

AUDI (FAW) : L1KD 615 301 D
SKODA (SVW) : 3CD 615 301
SKODA (SVW) : 1K0 615 301 AA
SKODA (SVW) : 1KD 615 301 D
VAG : 5QM 615 301 A
VAG : 1K0 615 301 AA
VAG : 5Q0 615 301 F
VAG : 5C0 615 301 B
VAG : 561 615 301
VAG : 561 615 301 A
VAG : 561 615 301 B
VAG : JZW 615 301 H
VAG : 5C0 615 301 E
VAG : L1KD 615 301 D
VAG : 1KD 615 301 D
VAG : 3CD 615 301
VAG : L3CD 615 301
VW (FAW) : 1K0 615 301 AA
VW (FAW) : 1KD 615 301 D
VW (FAW) : L3CD 615 301
VW (FAW) : L1KD 615 301 D
VW (FAW) : L1K0 615 301 AA
VW (FAW) : 3CD 615 301
VW (FAW) : 5C0 615 301 B
VW (FAW) : 5C0 615 301 E
VW (SVW) : 1KD 615 301 D
VW (SVW) : 1K0 615 301 AA

Product Description
Fitment Location Front
Pack Info Pair
Vehicle Fitment

Volkswagen GOLF VII Variant (BA5, BV5) 2.0 TDI 150HP/1968cc Wagon 04/2013-On
Volkswagen GOLF VII Variant (BA5, BV5) 2.0 R 4motion 280HP/1984cc Wagon 03/2015-03/2017
Volkswagen GOLF VII Variant (BA5, BV5) 1.8 TSI 4motion 179HP/1798cc Wagon 11/2016-08/2020
Volkswagen GOLF VII Variant (BA5, BV5) 1.4 TSI 122HP/1395cc Wagon 05/2013-03/2017
Volkswagen GOLF VII Variant (BA5, BV5) 1.4 TSI 125HP/1395cc Wagon 05/2014-08/2020
Volkswagen GOLF VII Variant (BA5, BV5) 1.4 TSI 150HP/1395cc Wagon 05/2014-On
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 TDI 150HP/1968cc Hatchback 08/2012-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 280HP/1984cc Hatchback 11/2013-03/2017
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 290HP/1984cc Hatchback 12/2016-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 220HP/1984cc Hatchback 04/2013-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 230HP/1984cc Hatchback 04/2013-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 245HP/1984cc Hatchback 03/2017-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 122HP/1395cc Hatchback 11/2012-03/2017
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 125HP/1395cc Hatchback 05/2014-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 140HP/1395cc Hatchback 08/2012-07/2017
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 150HP/1395cc Hatchback 05/2014-03/2021
Volkswagen GOLF VI Variant (AJ5) 2.0 TDI 140HP/1968cc Wagon 07/2009-07/2013
Volkswagen GOLF VI Variant (AJ5) 1.6 TDI 105HP/1598cc Wagon 07/2009-07/2013
Volkswagen GOLF VI Variant (AJ5) 1.4 TSI 122HP/1390cc Wagon 07/2009-07/2013
Volkswagen GOLF VI Variant (AJ5) 1.4 TSI 160HP/1390cc Wagon 07/2009-07/2013
Volkswagen GOLF VI (517) 1.4 TSI 160HP/1390cc Convertible 03/2011-05/2016
Volkswagen GOLF VI (5K1) 2.0 TDI 140HP/1968cc Hatchback 10/2008-05/2013
Volkswagen GOLF VI (5K1) 2.0 GTi 210HP/1984cc Hatchback 04/2009-11/2012
Volkswagen GOLF VI (5K1) 2.0 GTi 235HP/1984cc Hatchback 05/2011-11/2012
Volkswagen GOLF VI (5K1) 2.0 GTD 170HP/1968cc Hatchback 04/2009-11/2012
Volkswagen GOLF VI (5K1) 1.6 TDI 105HP/1598cc Hatchback 02/2009-11/2012
Volkswagen GOLF VI (5K1) 1.4 TSI 122HP/1390cc Hatchback 10/2008-11/2012
Volkswagen GOLF VI (5K1) 1.4 TSI 160HP/1390cc Hatchback 10/2008-11/2012
Volkswagen GOLF VI (5K1) 1.2 TSI 105HP/1197cc Hatchback 11/2008-11/2012
Volkswagen GOLF V (1K1) 3.2 R32 4motion 250HP/3189cc Hatchback 11/2005-11/2008
Volkswagen GOLF V (1K1) 2.0 TDI 16V 140HP/1968cc Hatchback 10/2003-11/2008
Volkswagen GOLF V (1K1) 2.0 TDI 140HP/1968cc Hatchback 12/2004-11/2008
Volkswagen GOLF V (1K1) 2.0 GTI 200HP/1984cc Hatchback 10/2004-02/2009
Volkswagen GOLF V (1K1) 2.0 GTI 230HP/1984cc Hatchback 09/2006-12/2008
Volkswagen GOLF V (1K1) 2.0 GT Sport TDI 170HP/1968cc Hatchback 11/2005-11/2008
Volkswagen GOLF V (1K1) 2.0 FSI 150HP/1984cc Hatchback 01/2004-11/2008
Volkswagen GOLF V (1K1) 1.9 TDI 105HP/1896cc Hatchback 10/2003-11/2008
Volkswagen GOLF V (1K1) 1.6 FSI 115HP/1598cc Hatchback 10/2003-07/2008
Volkswagen GOLF V (1K1) 1.6 102HP/1595cc Hatchback 01/2004-11/2008
Volkswagen GOLF V (1K1) 1.4 TSI 122HP/1390cc Hatchback 05/2007-11/2008
Volkswagen GOLF V (1K1) 1.4 GT Sport TSI 170HP/1390cc Hatchback 11/2005-11/2008
Volkswagen GOLF ALLTRACK VII Variant (BA5, BV5) 1.8 TSI 4motion 180HP/1798cc Wagon 12/2014-08/2020

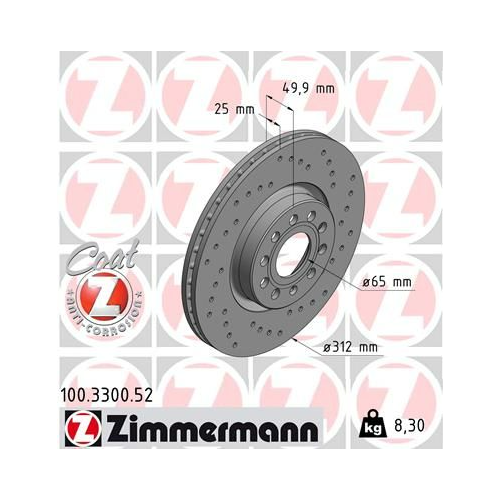

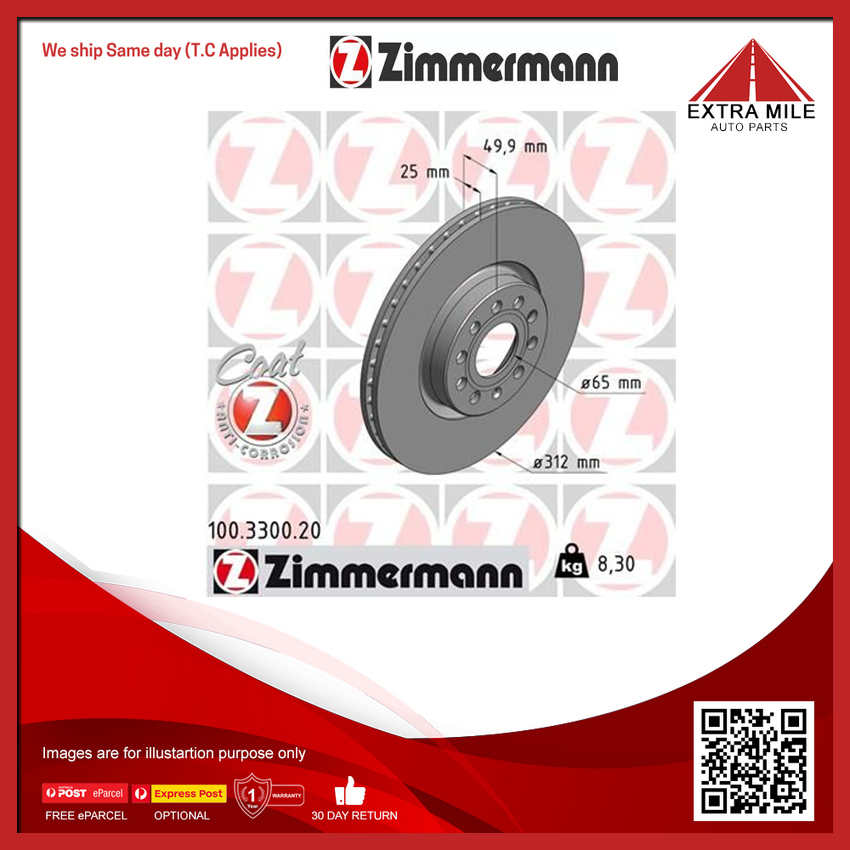

Technical Specifications
Protex_Blue
#GM Part Number L1KD 615 301 D / 3CD 615 301 / 1K0 615 301 AA / 1KD 615 301 D
Rotor Diameter 312mm
Hub Height 50mm
Centre Hole Dia. 65mm
Original Thickness (Max) 25mm
Original Thickness (Min) 22mm
Studs/Bolt Holes 5
Rotor Type Vented
Weight 8.3000Kg
Information About Disc Rotor

Changing brake discs at regular intervals is of extreme importance to be sure one’s car braking system delivers high end performance under challenging weather.

We have many brake disc rotor manufacturers across the globe. Extramile offer you the best brands and rotor models. Brands include Bosch, Delphi, AC Delco, RAE, RDA, Protex and few more to add.

If you are thinking of changing the disc rotor, we must determine which type of rotors the vehicle uses. There are four types Rotors

  • Blank & Smooth - Blank and smooth rotors are what you'll find on most passenger vehicles and feature a smooth, blank metal surface all the way around the rotor
  • Drilled - Drilled rotors feature drilled holes around the metal surface
  • Slotted - Slotted rotors feature long "slots" or lines in the metal surface
  • Drilled & Slotted - Drilled and slotted rotors combine the drilled holes and slots for enhanced performance

Blank & Smooth

Protex_Blue

As stated above, blank and smooth rotors are what you'll commonly find on most new passenger vehicles. Keep in mind that oe-specific rotors have a basic and premium option, and it all has to do with how they're manufactured. Unless you're a super aggressive driver or you're driving a luxury vehicle, blank rotors are a great choice for your vehicle.

Basic oe-specific rotors are traditionally made from recycled steel and a lot of times don't perform as well as your original equipment manufacturer (OEM) rotors due to thicker internal fins, which in turn impact the cooling abilities of your rotors. If you're going to use premium ceramic brake pads with your new rotors, don't pair them with a basic set of rotors. Basic rotors will also end up reducing the life of your new pads, as they'll wear down quicker due to the increased heat.

Drilled Rotors

Protex_Blue

As the name suggests, drilled rotors have holes drilled throughout the surface. These holes allow water, dust, and heat to easily dissipate off the surface of the rotor. Drilled rotors are a great choice for drivers that live in wetter climates as they'll help increase stopping power in wet, rainy conditions. If you're looking at drilled rotors for a performance vehicle, you'll want to stay away. Drilled rotors don't work well under high-heat and can fail pretty quickly in a race-type driving scenario.

Slotted Rotors

Protex_Blue

As mentioned before, slotted rotors feature slots around the exterior surface of the rotor. They're a great choice for heavy-duty trucks and SUVs, especially those that need improved stopping power when towing or hauling. The slots are designed to draw more air in between the pad and rotor surface, which improves cooling and heat dispersion. They're also designed to help remove excess brake debris and pad glaze that can occur at higher temperatures. While they are more efficient in a few ways, they come with the downside of not lasting as long, which also affects the life of your pads.

Drilled & Slotted Rotors

Protex_Blue

Lastly, drilled and slotted rotors are primarily designed for performance vehicles, like sports cars, that need enhanced cooling and heat dispersion. This type of rotor was designed to improve braking at high speeds during racing or track days.

cutting_edge_tec

Why you should buy Disc Rotor Auto Parts from us?

  • Authorized Dealer Genuine Warranty
  • 15 Years Industry Experience
  • Pre-sales Customer Service Support
  • 100% Fitment Guarantee
  • Local Warehouse Fast Delivery
  • Free 30 Days Returns
Volkswagen GOLF VII Variant (BA5, BV5) 2.0 TDI 150HP/1968cc Wagon 04/2013-On
Volkswagen GOLF VII Variant (BA5, BV5) 2.0 R 4motion 280HP/1984cc Wagon 03/2015-03/2017
Volkswagen GOLF VII Variant (BA5, BV5) 1.8 TSI 4motion 179HP/1798cc Wagon 11/2016-08/2020
Volkswagen GOLF VII Variant (BA5, BV5) 1.4 TSI 122HP/1395cc Wagon 05/2013-03/2017
Volkswagen GOLF VII Variant (BA5, BV5) 1.4 TSI 125HP/1395cc Wagon 05/2014-08/2020
Volkswagen GOLF VII Variant (BA5, BV5) 1.4 TSI 150HP/1395cc Wagon 05/2014-On
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 TDI 150HP/1968cc Hatchback 08/2012-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 280HP/1984cc Hatchback 11/2013-03/2017
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 290HP/1984cc Hatchback 12/2016-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 220HP/1984cc Hatchback 04/2013-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 230HP/1984cc Hatchback 04/2013-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 245HP/1984cc Hatchback 03/2017-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 122HP/1395cc Hatchback 11/2012-03/2017
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 125HP/1395cc Hatchback 05/2014-08/2020
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 140HP/1395cc Hatchback 08/2012-07/2017
Volkswagen GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI 150HP/1395cc Hatchback 05/2014-03/2021
Volkswagen GOLF VI Variant (AJ5) 2.0 TDI 140HP/1968cc Wagon 07/2009-07/2013
Volkswagen GOLF VI Variant (AJ5) 1.6 TDI 105HP/1598cc Wagon 07/2009-07/2013
Volkswagen GOLF VI Variant (AJ5) 1.4 TSI 122HP/1390cc Wagon 07/2009-07/2013
Volkswagen GOLF VI Variant (AJ5) 1.4 TSI 160HP/1390cc Wagon 07/2009-07/2013
Volkswagen GOLF VI (517) 1.4 TSI 160HP/1390cc Convertible 03/2011-05/2016
Volkswagen GOLF VI (5K1) 2.0 TDI 140HP/1968cc Hatchback 10/2008-05/2013
Volkswagen GOLF VI (5K1) 2.0 GTi 210HP/1984cc Hatchback 04/2009-11/2012
Volkswagen GOLF VI (5K1) 2.0 GTi 235HP/1984cc Hatchback 05/2011-11/2012
Volkswagen GOLF VI (5K1) 2.0 GTD 170HP/1968cc Hatchback 04/2009-11/2012
Volkswagen GOLF VI (5K1) 1.6 TDI 105HP/1598cc Hatchback 02/2009-11/2012
Volkswagen GOLF VI (5K1) 1.4 TSI 122HP/1390cc Hatchback 10/2008-11/2012
Volkswagen GOLF VI (5K1) 1.4 TSI 160HP/1390cc Hatchback 10/2008-11/2012
Volkswagen GOLF VI (5K1) 1.2 TSI 105HP/1197cc Hatchback 11/2008-11/2012
Volkswagen GOLF V (1K1) 3.2 R32 4motion 250HP/3189cc Hatchback 11/2005-11/2008
Volkswagen GOLF V (1K1) 2.0 TDI 16V 140HP/1968cc Hatchback 10/2003-11/2008
Volkswagen GOLF V (1K1) 2.0 TDI 140HP/1968cc Hatchback 12/2004-11/2008
Volkswagen GOLF V (1K1) 2.0 GTI 200HP/1984cc Hatchback 10/2004-02/2009
Volkswagen GOLF V (1K1) 2.0 GTI 230HP/1984cc Hatchback 09/2006-12/2008
Volkswagen GOLF V (1K1) 2.0 GT Sport TDI 170HP/1968cc Hatchback 11/2005-11/2008
Volkswagen GOLF V (1K1) 2.0 FSI 150HP/1984cc Hatchback 01/2004-11/2008
Volkswagen GOLF V (1K1) 1.9 TDI 105HP/1896cc Hatchback 10/2003-11/2008
Volkswagen GOLF V (1K1) 1.6 FSI 115HP/1598cc Hatchback 10/2003-07/2008
Volkswagen GOLF V (1K1) 1.6 102HP/1595cc Hatchback 01/2004-11/2008
Volkswagen GOLF V (1K1) 1.4 TSI 122HP/1390cc Hatchback 05/2007-11/2008
Volkswagen GOLF V (1K1) 1.4 GT Sport TSI 170HP/1390cc Hatchback 11/2005-11/2008
Volkswagen GOLF ALLTRACK VII Variant (BA5, BV5) 1.8 TSI 4motion 180HP/1798cc Wagon 12/2014-08/2020
SKU 100.3300.52_6
Barcode # 4250238748465
Brand ZIMMERMANN
Shipping Weight 8.3000kg
